Adhesive Line-up
- Automobile
- Elevators, Escalators

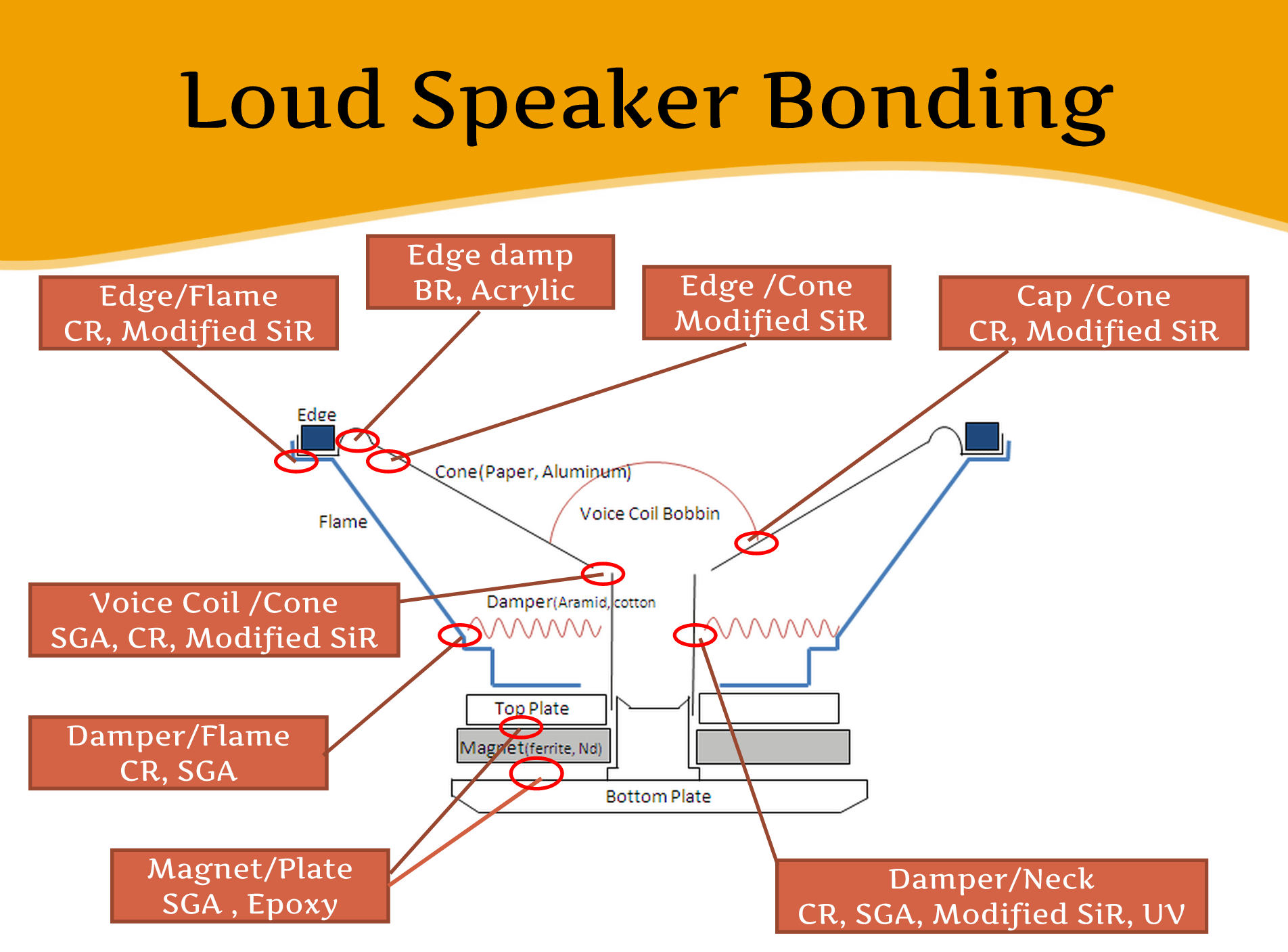

- Speakers

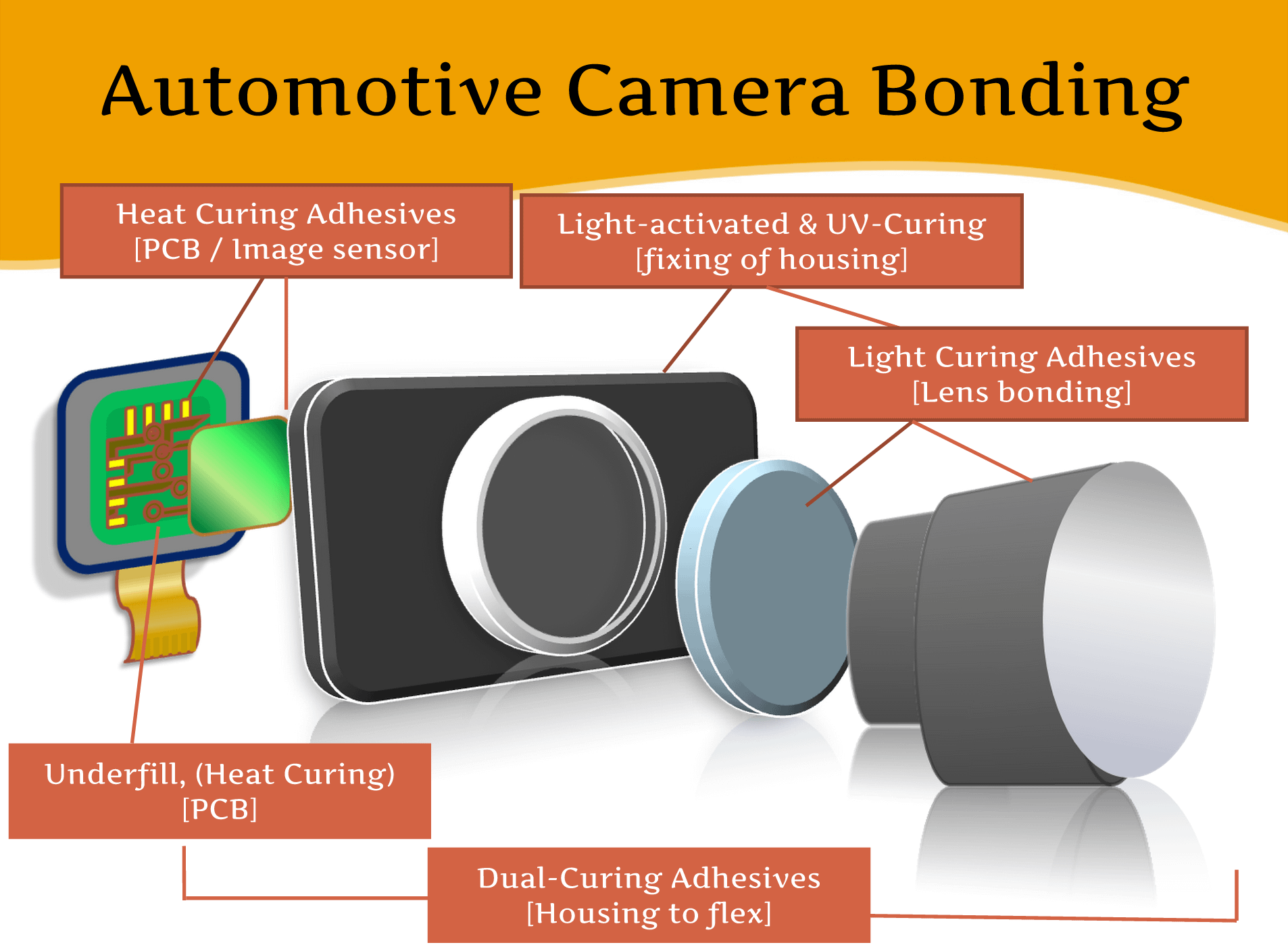

- Camera parts
- Motors, Relays, Condensers
- Semiconductor devices/Modules
- Optical devices/ products (LEDs, sensors)
Click image above to enlarge.

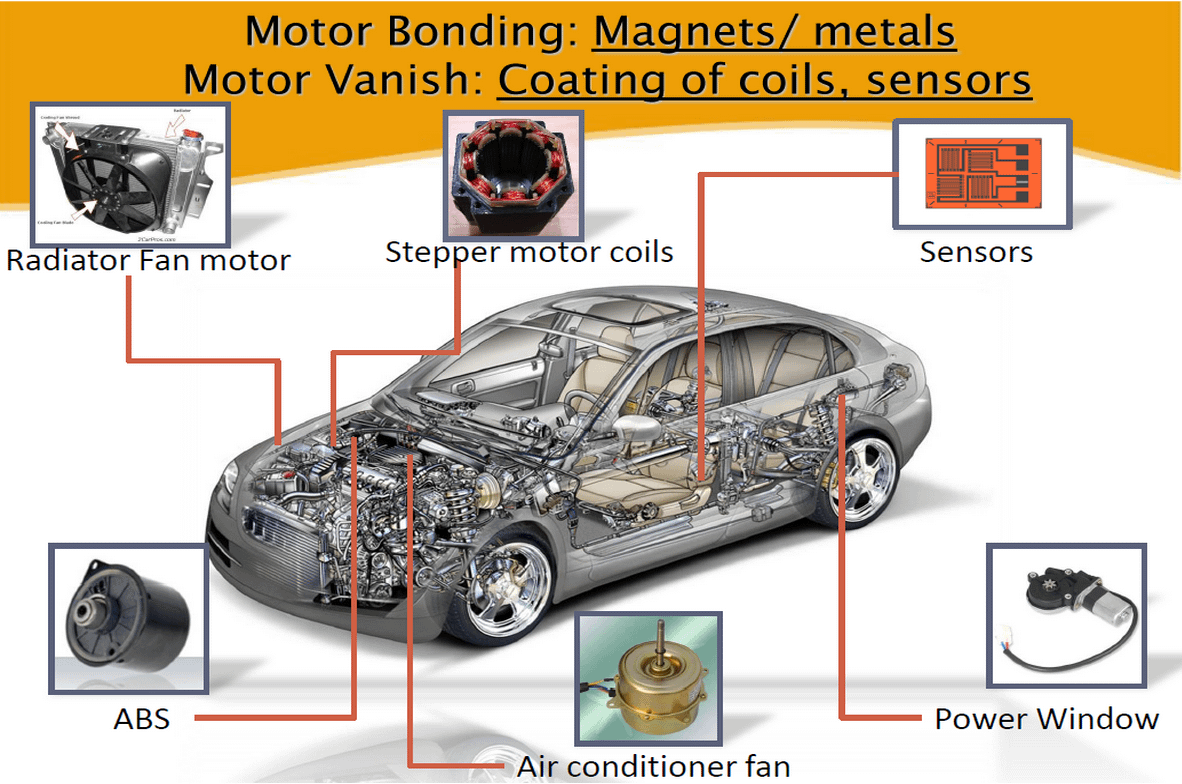

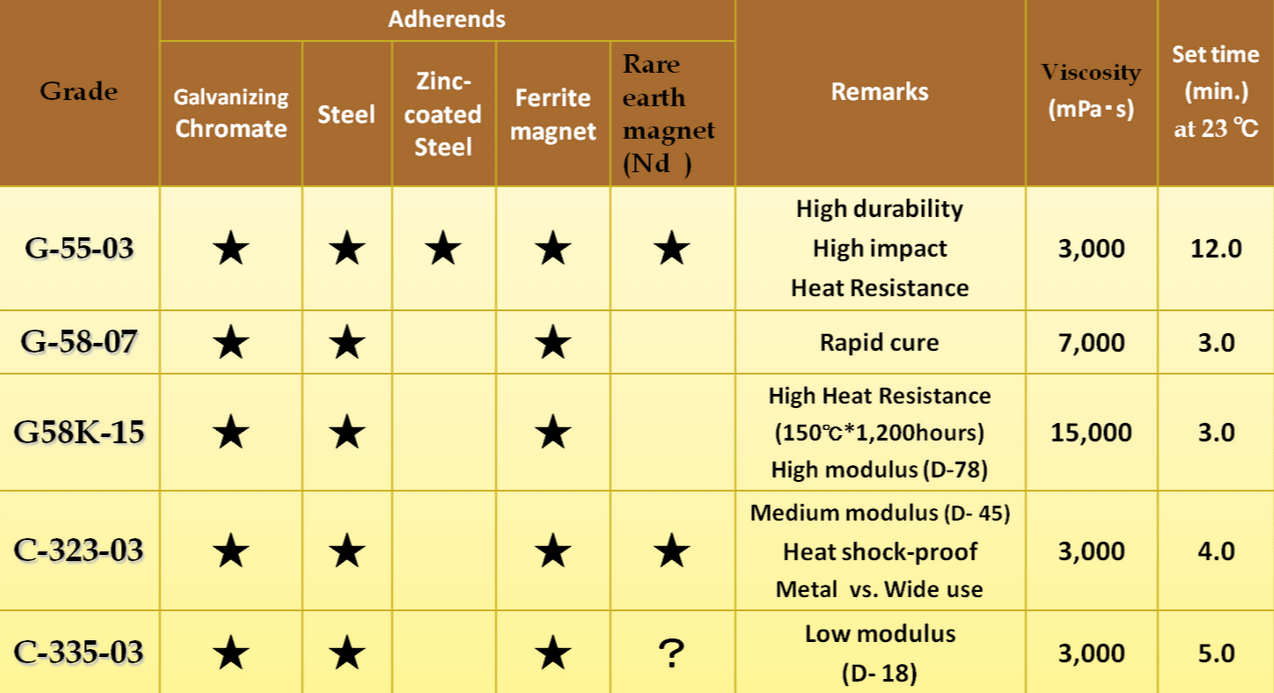

Motor Bonding Line-up
Click image above to enlarge

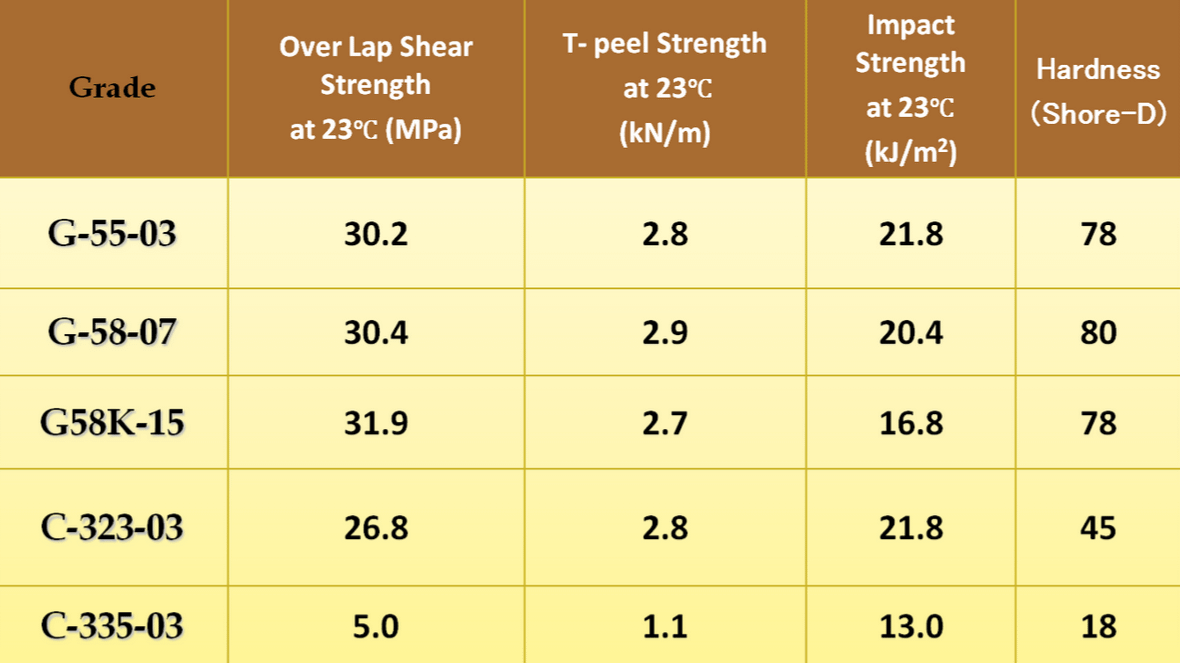

Adhesive Characteristics
Click image above to enlarge
Click image above to enlarge

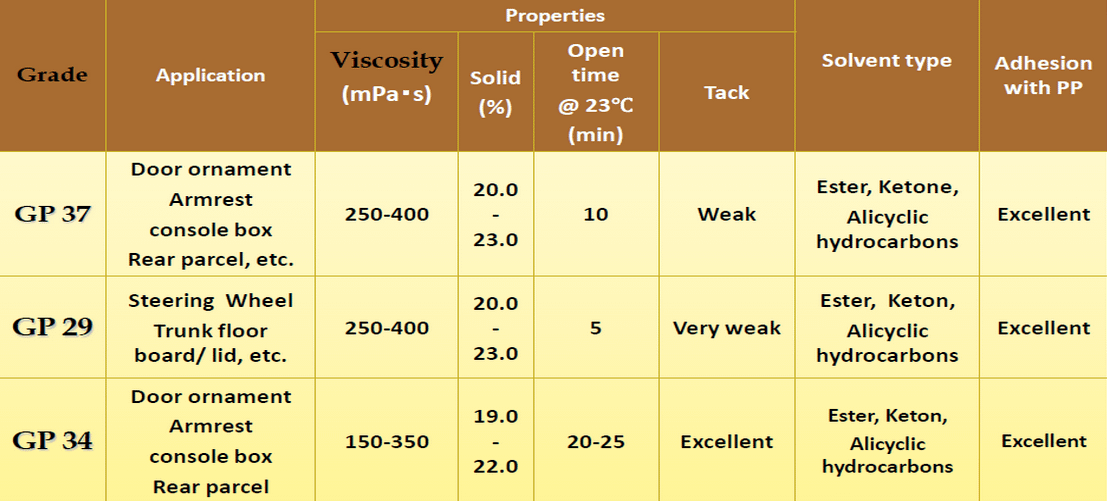

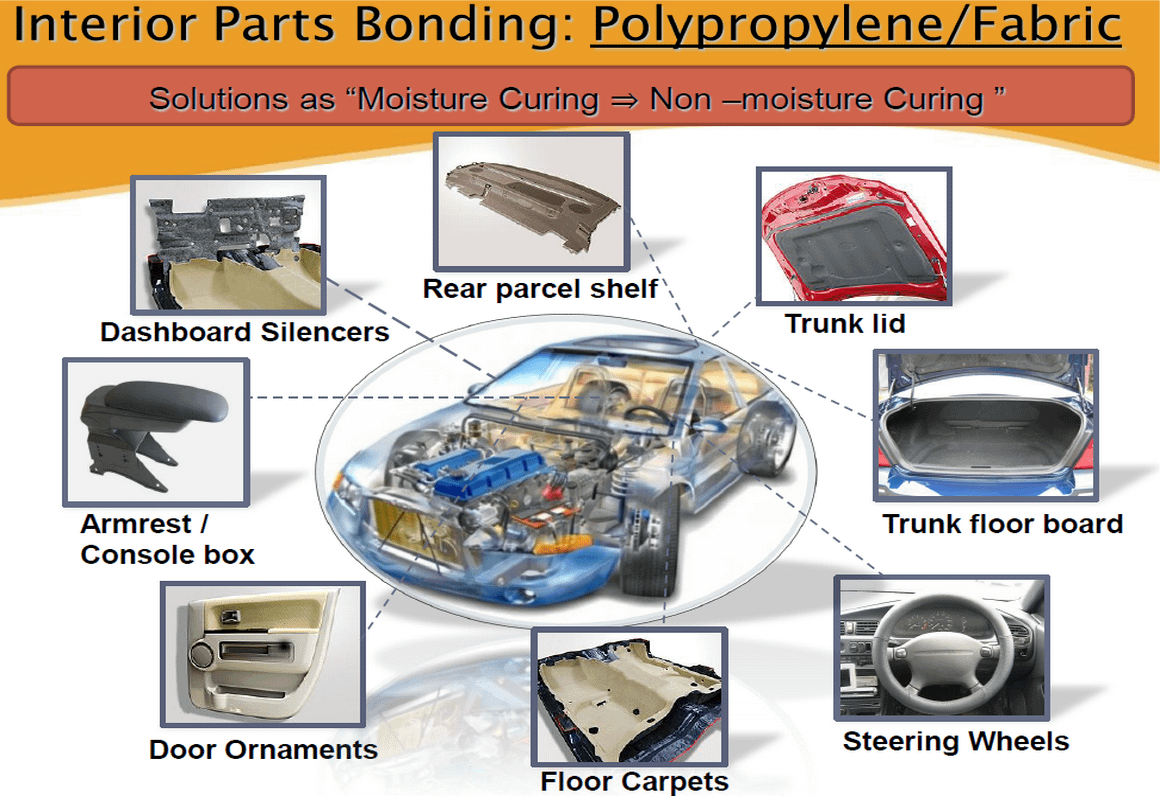

- Strong Adhesion with PP
- Slow Onset of Adhesion
- Maintenance Friendly of Applicator
- Long Stability & Shelf Life
Click image above to enlarge
Click image above to enlarge
Click image above to enlarge

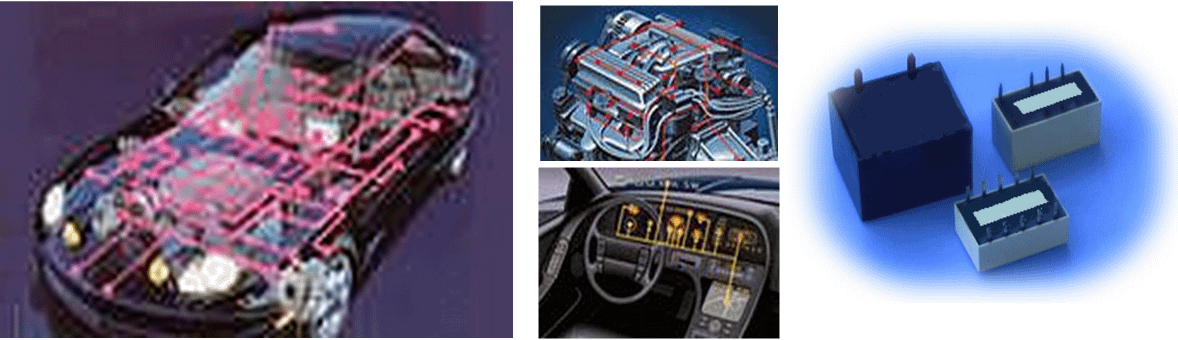

Relays, Gear sensor, Keyless go, Tire pressure control sensor, ABS sensor, Micro switches, Ignition sensors.
The increased demands of new automobile applications are accompanied by increased requirements on potting resin and adhesive properties. With high oil and temperature resistance for engine compartment applications, EpiFine has strong reliability with excellent flow ability for miniaturized components. EpiFine has No.1 Worldwide share of Automotive Relay Sealing.
Features:
EpiFine 1 component resin
- No organic gas generated during reaction
- Excellent surface adhesion between plastics
- Good heat and chemical resistance
- Controlled epoxy flow characters
- Over 560V for C.T.I value (IEC112)
